Install the wiring harness section of the transmission wiring harness

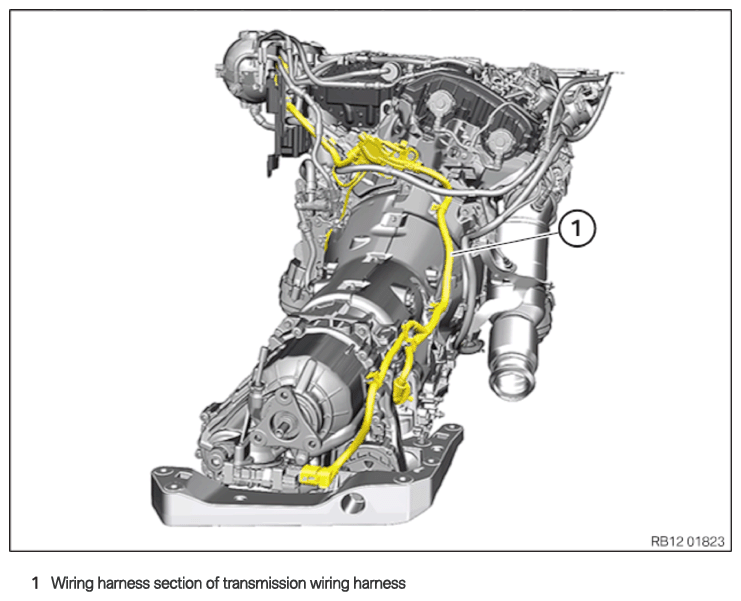

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

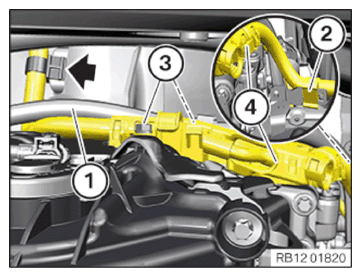

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

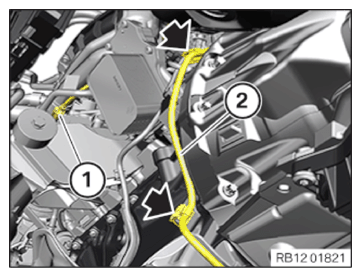

- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).
- Attach the connector (1) to the air conditioning compressor and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (2) of the supply module.
- Secure clamps (arrow).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
» Fastening the transmission
- Move the transmission (3) to the installation position.
- Replace screws (2).
Parts: Screws
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Secure the cable with the clamp (1).
- Loosening the luggage strap (1).
- Remove special tools 2 219 012
and 0 495 498 (23 4 050)
.
- Insert and install terminal 50 (2).
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Terminal 50 to starter motor M6 Tightening torque 7 Nm - Secure the clamps (arrows).
- Feed in and install the wiring harness section (4) of the transmission wiring harness.
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATION
| Wiring harness section for transmission to cylinder head | ||
| M6x16 | Tightening torque | 8 Nm |
- Connect and lock cable clip (2).
- Connect the positive battery cable (1) and lock.
- Secure clamps (arrow).
