Install the retaining plates

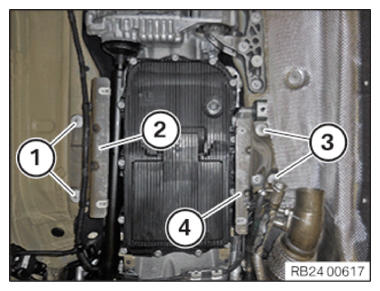

- Install the retaining plates (2) and (4).
- Replace the nuts (1) and (3).
Parts:
Nuts
- Install the nuts (1) and (3) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Retaining plates for vehicle underbody cover |
Sheet metal nut/plastic nut
Replace nuts. |
tightening torque
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
