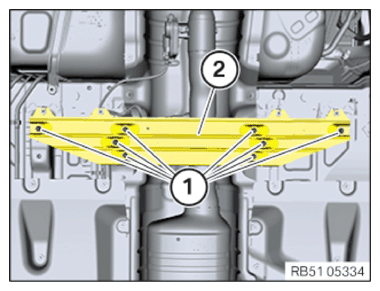

Install the connecting supports on the tunnel

• Position the connecting support (2) on the tunnel.
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Connecting support on tunnel to body
M8x25 screw	Tightening torque  20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
