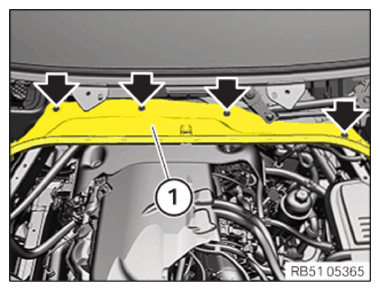

Install the cowl upper part

• Guide in and install cowl upper part (1).
• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Cowl upper part
  Hexagon screw	tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

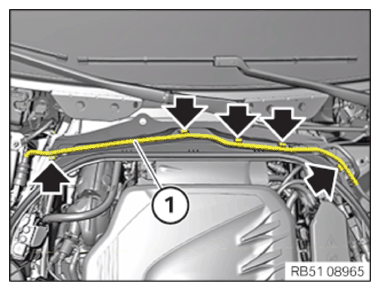

• Version with mild hybrid technology:

Clip line (1) into the holders (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
