Installing wiring harness for sensor system of cylinder bank 1

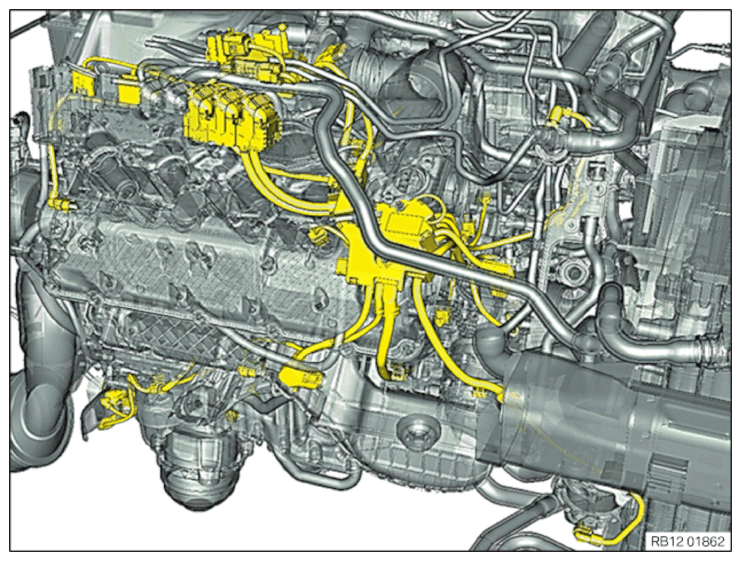

Wiring harness section for sensor system of cylinder bank 1

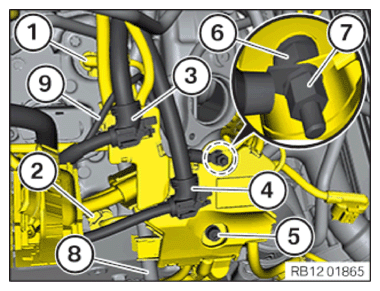

- Guide in and position wiring harness for sensor system of cylinder bank 1.

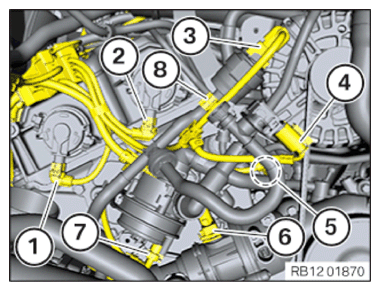

- Clip in wiring harness mounting (8) .
- Connect connector (7) to the electronic coolant pump of exhaust turbocharger and lock.
- Connect connector (6) to thermostat housing and lock.
- Attach the connector (5) to the temperature sensor and lock it.
- Connect connector (4) to differential pressure sensor and lock.
- Connect connector (3) of the tank vent line of cylinder bank 1 and lock.
- Connect connector (2) on the VANOS solenoid actuator of the exhaust camshaft of cylinder bank 1 and lock.
- Connect connector (1)
on the VANOS solenoid actuator of the intake camshaft of cylinder bank 1 and lock.

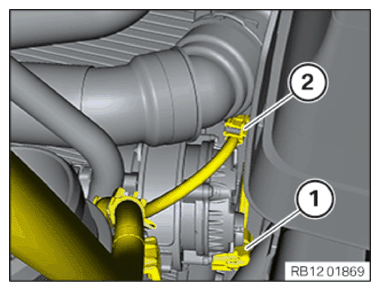

- Clip in wiring harness mounting (2) .

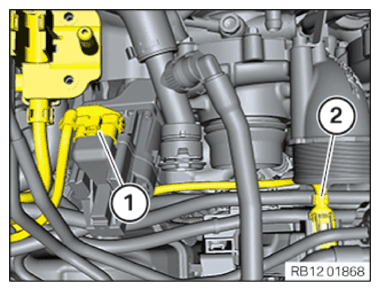

- Connect connector (1)
on the electronic coolant pump of the low-temperature coolant circuit and lock.
- Connect the connector (2) on the alternator and lock.

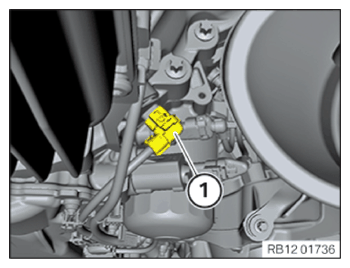

- Connect connector (1)
on exhaust turbocharger and lock.

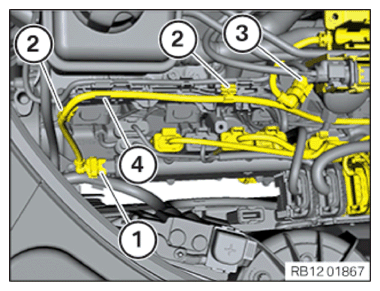

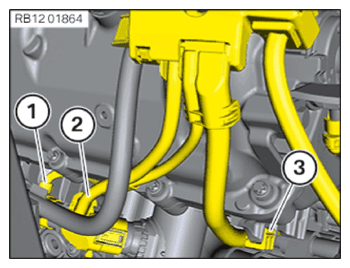

- Clip wiring harness for the sensor system of cylinder bank 1 into the wiring harness mounting (4) .
- Connect connector (3) of the high pressure pump of cylinder bank 1 and lock.

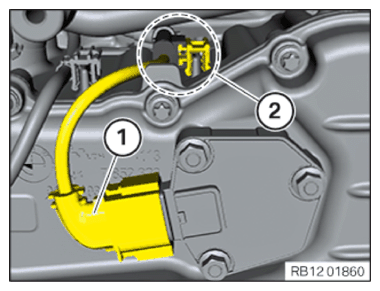

- Clip in wiring harness mountings (2) .
- Connect connector (1) on rail pressure sensor and lock.
- Connect the connector (4) of the oxygen sensor monitor of the cylinder bank 1 and lock it.
- Connect the connector (3) of the Lambda oxygen sensor of cylinder bank 1 and lock it.

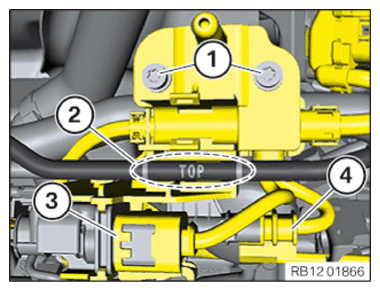

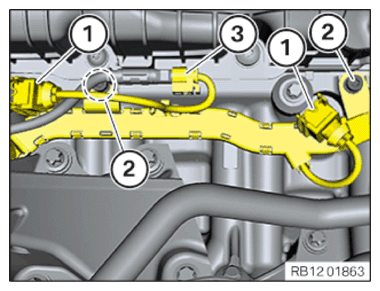

- Position coolant ventilation line in area (2) and clip in.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Holder of sensor system | ||
| M6x16 screw | Tightening torque | 10 Nm |
- Feed in the alternator cable (8) on the holder.
- Tighten down screw (6) .
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to cylinder head cover | ||
| M6x16 screw | tightening torque | 10 Nm |
- Position cable heads.
- Tighten nut (7) .
TIGHTENING TORQUES SPECIFICATION
| Ground cable to hold-down device | ||
| Nuts | Tightening torque | 5.5 Nm |
- Tighten down screw (5) .
TIGHTENING TORQUES SPECIFICATION
| Wiring harness to cylinder head cover | ||
| M6x16 screw | tightening torque | 10 Nm |
- Clip in wiring harness for sensor system of cylinder bank 2 (4) .
- Clip in wiring harness section, Digital Motor Electronics (DME) (3) .
- Connect connector (2) on intake camshaft sensor of cylinder bank 1 and lock.
- Connect connector (1) on exhaust camshaft sensor of cylinder bank 1 and lock.
- Clip in wiring harness mounting (3) .
- Connect connector (2) on Valvetronic servomotor and lock.
- Connect connector (1)
on pressure sensor for intake air and lock.
- Connect connectors (3) and lock.
- Clip plug connection (3) into wiring harness mounting.
- Tighten down screws (2) .
TIGHTENING TORQUES SPECIFICATION
| Cylinder bank 1, wiring harness sensor system on heat shield | ||
| M6x16 screw | Tightening torque | 10 Nm |
- Connect connectors (1)
and lock.
- Raise vehicle.
- Check connector (1) for coolant residues; clean with compressed air if necessary.
- Connect connectors (1)
and lock.
- Connect connectors (1)
and lock.
- Position the heat shield (2) .
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| heat shield | ||
| M6x16 screw | Tightening torque | 8 Nm |

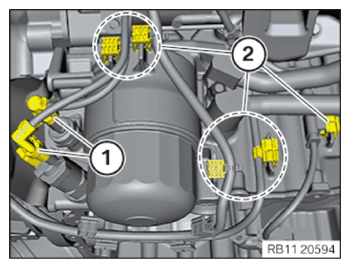

- Connect connectors (2) and lock.
- Position the plug connection (2) .
- Lock the plug connection (2) downwards with the snap-in lug.
- Connect connectors (1)
and lock.

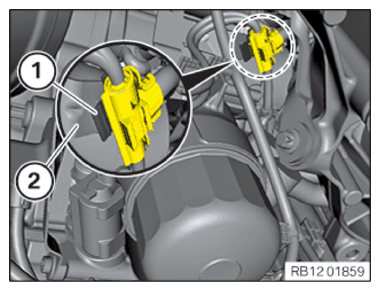

- Secure wiring harness section (1)
in the holder (2)
.
- Connect connectors (1) and lock.
- Engage the cable bracket (2) .
Follow-up work
- Refer to INSTALLING THE RIGHT THROTTLE BODY .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING OIL FILLER NECK .
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to FASTENING ANTI-ROLL BAR ON FRONT AXLE SUPPORT .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING MOUNTING FOR DME MASTER CONTROL MODULE SUPPORT .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Refer to INSTALLING ACOUSTIC COVER .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to CONNECTING BATTERY GROUND LEAD .
