Installing transmission wiring harness
- Feed in the transmission wiring harness.
- Connect plug connection (1) and lock.
- Position the connector (2).
- Turn the connector with the bayonet closure (2) clockwise and lock.

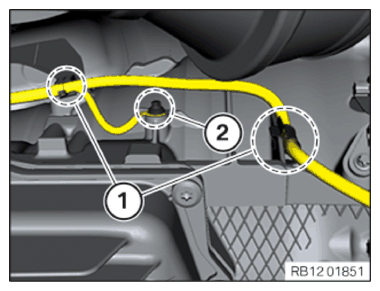

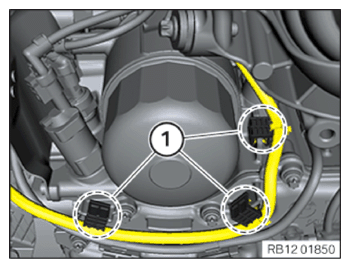

- Engage the detents of the transmission wiring harness (1).
- Position the grounding point.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Ground connection on transmission | ||
| M6x12 screw | Tightening torque | 10 Nm |

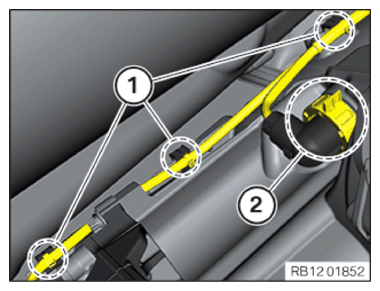

- Engage the detents of the transmission wiring harness (1).
- Engage the detents of the transmission wiring harness (1).
- Replace the cable ties (1).
Parts: Cable tie
- Tighten the cable tie (1) and cut off protruding end.

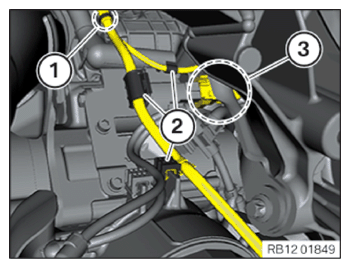

- Connect plug connection (3) and lock.
- Engage the detents of the transmission wiring harness (2).
- Fix vehicle wiring harness (2) with the clips (1).

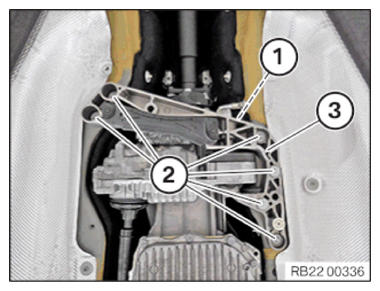

Installing transmission cross member .
- Install the transmission cross member (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to rubber mounts | ||
| M12 | tightening torque | 68 Nm |
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050) and 2 219 012 .
Install the stiffening plate
- Insert the thrust field (3) on the covers of the steering assembly (2) and position.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Thrust field to front axle support | ||
| M8 Replace screws. |
Joining torque | 25 Nm |
| Angle of rotation | 70° | |
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection | ||
| screw | Tightening torque | 3 Nm |
Install front underbody protection
Install front underbody protection
- Insert the front underbody protection (1).
- Slide the front underbody protection (1) slightly backwards and insert it under the thrust field (2).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection | ||
| screw | Tightening torque | 3 Nm |

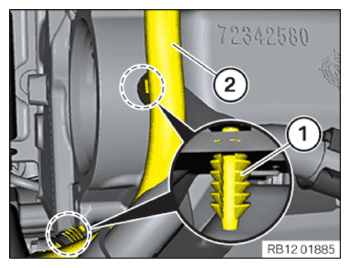

- Feed in the transmission wiring harness (2).
- Engage the transmission wiring harness (2) on the holders (1).
- Lock the holder (1) of the transmission wiring harness downward.
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
CAUTION:
Contact with hazardous substances
.
Health impairment .
Health impairment .
- Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
- Conduct all work in appropriate personal protective equipment only.

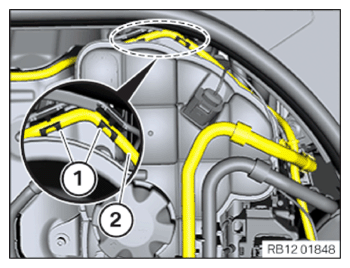

- Connect and lock tank vent line (2).
- Engage the transmission wiring harness downward in area (1).

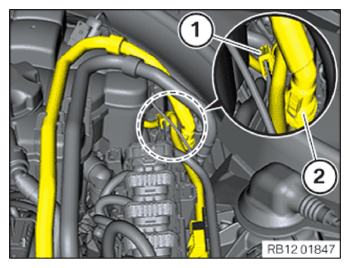

- Engage the engine wiring harness on the holder (2).
- Lock the clip of the vehicle wiring harness (1).

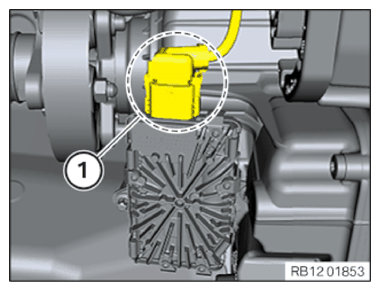

- Connect and lock the plug connections (1).
Follow-up work
- Refer to INSTALLING THE VACUUM PUMP .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
- Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CONNECTING BATTERY GROUND LEAD .
