Installing the vacuum pump

• Replace the sealing ring (2) on the vacuum pump (1).

  Parts:  Sealing ring

  NOTE: TECHNICAL INFORMATION
  Always turn the drive flange in clockwise
  direction.

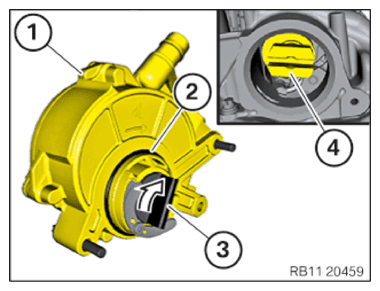

• Position the drive flange (3) clockwise to the recess (4) on the camshaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the vacuum pump (3) and position.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Vacuum pump to cylinder head
  M6x25 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Vacuum pump to cylinder head
  M6x25 screw	Tightening torque	10 Nm

• Position the vacuum line.
• Connect the vacuum line at the closure (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the line (1) and snap-into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
• Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Installing the rear right engine compartment cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Remove the battery cover  .

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
  • Remove the special tool 2 452 007  from the battery.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Install the cover (2).
  • Lock the lock (1).
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to CONNECTING BATTERY GROUND LEAD .
