Installing the coolant expansion tank for the low-temperature coolant circuit
CAUTION:
Materials harmful to health
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers
- Conduct all work in appropriate personal protective equipment only
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant
Immobilization period-long fill of coolant!
Do not reuse used coolant
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant

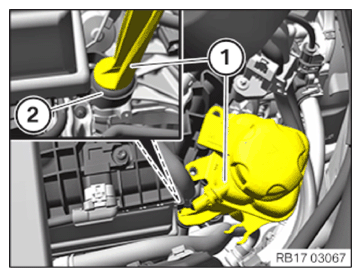

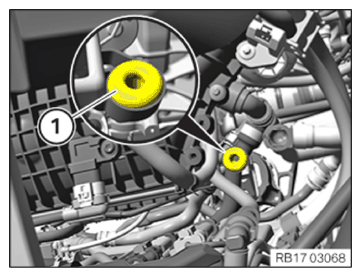

- Check rubber mount (1) for correct fit
- Install the coolant expansion tank (1) of the low-temperature coolant circuit and attach in the rubber mount (2)

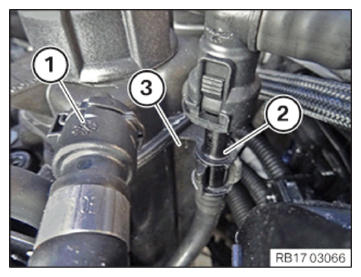

- Attach the tank vent line (2) at the holder (3)
- Connect and lock coolant line (1)
The coolant line (1) must engage audibly

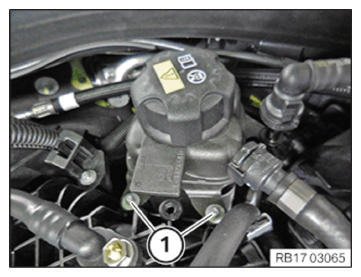

- Tighten the screws (1)
TIGHTENING TORQUE SPECIFICATIONS
| Coolant expansion tank on the low-temperature coolant circuit to charge air cooler | ||
| M6x18 | Tightening torque | 5.3 Nm |
- Variant with rear wheel drive:

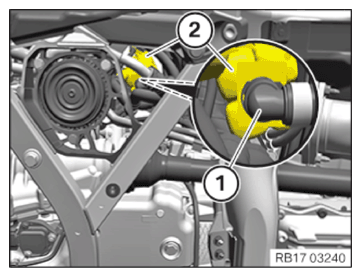

Connect and lock the coolant line (1) on the coolant expansion tank (2) of the low-temperature coolant circuit
The coolant line (1) must engage audibly
- Variant with all-wheel drive:

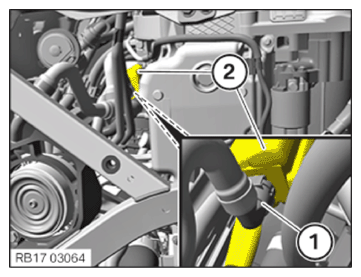

Connect and lock the coolant line (1) on the coolant expansion tank (2) of the low-temperature coolant circuit
The coolant line (1) must engage audibly
Follow-up work
- Refer to CONNECT THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to SECURING THE ENGINE OIL COOLER .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
