51 16 165 Removing and installing/replacing complete center console

Special tools required:

• 2 298 504

Necessary preliminary tasks:

• Refer to REMOVING FRONT STORAGE COMPARTMENT .
• Refer to REMOVING REAR CENTER CONSOLE COVER .
• Refer to REMOVING TRIM PANEL FOR PEDAL ASSEMBLY .
• Refer to REMOVING TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT .
• Refer to LOOSEN THE GAITER FOR THE PARKING BRAKE LEVER from the center console

With automatic transmission only:

• Remove GEAR SELECTOR SWITCH .

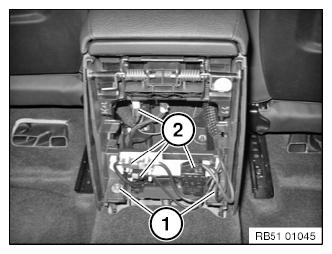

Unscrew nuts (1).

Tightening torque 51 16 3AZ .

Disconnect plug connections (2), depending on version.

Courtesy of BMW OF NORTH AMERICA, INC.

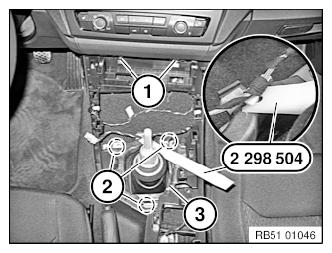

Release screws (1).

Tightening torque 51 16 4AZ .

Unfasten screws (2).

Tightening torque 51 16 3AZ .

Detach wiring harness (3) from central console mount using special tool 2 298 504  .

Courtesy of BMW OF NORTH AMERICA, INC.

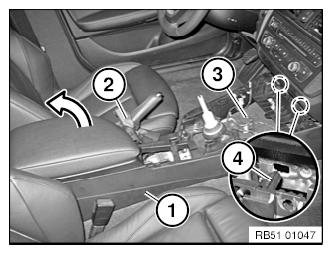

Raise the center console (1) rear and feed out gaiter (2).

Remove center console (1) to the rear/top.

If applicable, note other plug connections and cable clips.

Installation note:

Feed center console (1) correctly into dashboard including guides (4).

Make sure wiring harness (3) is in correct position.

Courtesy of BMW OF NORTH AMERICA, INC.

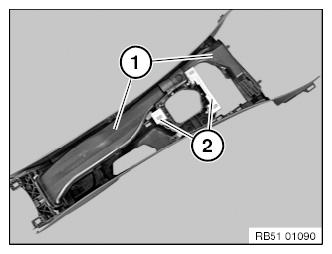

Replacement (depending on version):

• Modify air ducts (1)
• Modify retaining bracket (2)
• Change over CENTER ARMREST .
• Modify KNEE PAD .
• Modify INSERT IN STORAGE COMPARTMENT .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Modify BASE PLATE for telephone
