51 16 150 Removing and installing (replacing) front storage compartment
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary work:
- Refer to REMOVING CENTER CONSOLE COVER .

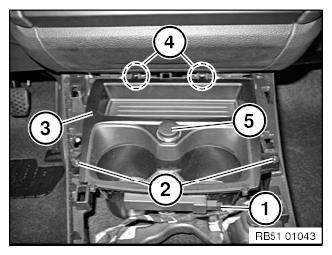

Unlock plug connection (1) and disconnect.
Unfasten screws (2).
Feed the storage compartment (3) out of the guides (4) and disconnect the plug connection from the power socket (5).
Installation note:
Make sure guides (4) are correctly seated.

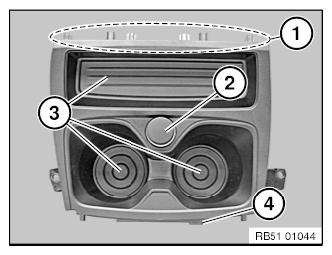

Installation note:
Guides (1) must not be damaged.
Replacement:
- Modify charging socket (2)
- Modify storage trays (3)
- Modify AERIAL (4)
