51 16 206 Removing and installing/replacing center armrest (2' Series coupe and convertible, 2017-2021)

Necessary preliminary work:

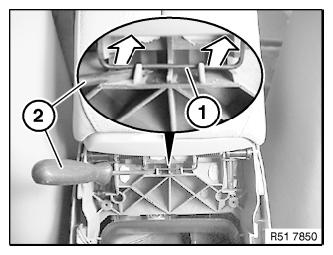

NOTE: Open the center armrest, because the spring (1) will otherwise be under too much tension.

Detach the spring (1) with the screwdriver (2).

Installation note:

Make sure the spring (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

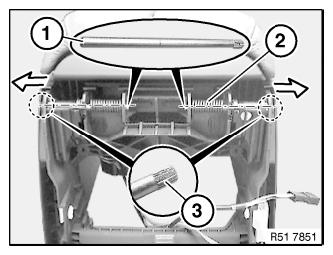

Drive the hinge axes (1) out.

NOTE: The hinge axes (1) are secured with gearing (3) on the outside.

Remove the spring (2), open the center armrest and feed out of storage compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
