51 45 195 Removing and installing/replacing instrument panel trim, bottom right

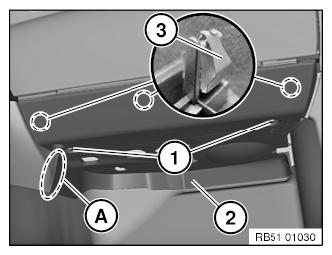

Unfasten screw connection (1).

Tightening torque 51 45 9AZ .

Release trim panel (2) at clamps (3).

Feed out trim panel (2) in area (A) toward the bottom.

Lower trim panel (2) slightly and disconnect plug connections behind it.

Installation note:

Feed in trim panel (2) in area (A) correctly behind the center console.

Clamps (3) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

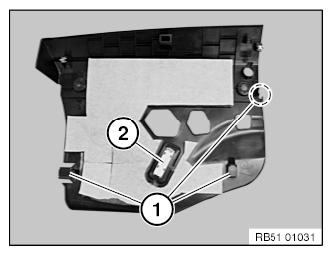

Guides (1) must not be damaged or missing.

Feed guides (1) correctly into the corresponding holders on the vehicle.

Replacement (depending on version):

Remount FOOTWELL LIGHT (2) .

Remount POWER SOCKET .

Courtesy of BMW OF NORTH AMERICA, INC.
