51 16 142 Removing and installing (replacing) insert in center armrest storage compartment (2' Series coupe and convertible, 2017-2021)
Special tools required:
- 64 1 020

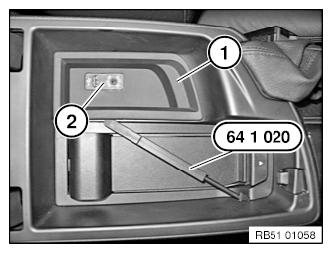

Unclip insert (1) with special tool 64 1 020 in upward direction.
Unlock and disconnect the plug connections of the connecting socket (2).
Remove insert (1).
Replacement:
Modify CONNECTING SOCKET (2) .
Installation note:

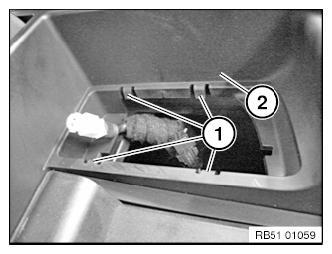

Catches (1) on storage compartment (2) and corresponding counter-pieces on the insert must not be damaged or missing.
