Replace door trim panel

Preliminary work

• Refer to REMOVING THE DOOR ENTRY LIGHT AT THE FRONT LEFT OR RIGHT .
• Refer to REMOVING FRONT DOOR TRIM PANEL .
• Refer to REMOVING THE BOWDEN CABLE FOR THE INNER DOOR OPENER .
• Refer to REMOVING THE LED MODULE FOR DECORATIVE TRIM .
• Refer to REMOVING THE LED MODULE FOR THE DOOR POCKET .
• Refer to REMOVING TRIM OF TAILGATE BUTTON .

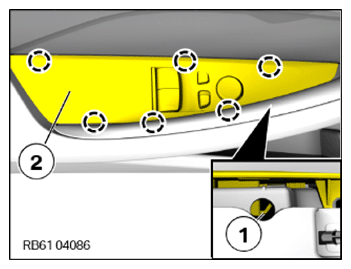

• Release the lock (1) using a suitable tool.
• Release the power window switch from all marked locks using a suitable tool.

  Courtesy of BMW OF NORTH AMERICA, INC.

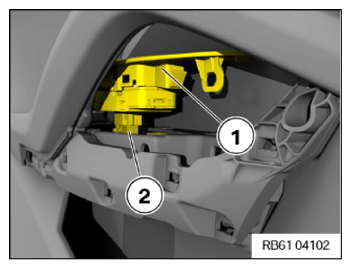

• Unlock plug connection (2) and disconnect.
• Remove power window switch (1).
• Replace door trim panel.

  Parts:  Door trim panel

  Courtesy of BMW OF NORTH AMERICA, INC.

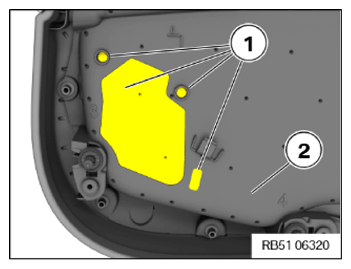

• Separate out the pre-stamped marks (1) from the door trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.
• Insert the power window switch (1) into the door trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

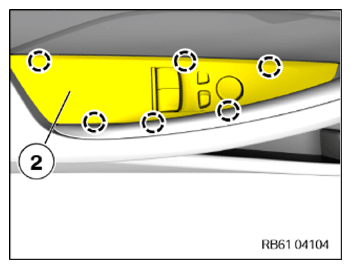

• Clip in the power window switch (2) at all marked locks.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE BUTTON TRIM .
• Refer to INSTALLING THE LED MODULE FOR THE DOOR POCKET .
• Refer to REMOUNTING COMPONENTS ON THE DECORATIVE STRIP .
• Refer to INSTALLING THE DECORATIVE STRIP .
• Refer to INSTALLING LED MODULE FOR DECORATIVE TRIM .
• Refer to INSTALLING SPEAKER TRIM .
• Refer to INSTALLING THE BOWDEN CABLE FOR THE INSIDE DOOR OPENER .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE DOOR ENTRY LIGHT AT THE FRONT LEFT OR RIGHT .
