Installing the LED module for the door pocket

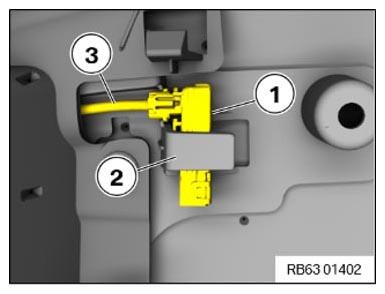

Clip the fiber-optic conductor (3) into the LED module (1).
Clip the LED module (1) into the holder (2).

G15685361

Courtesy of BMW OF NORTH AMERICA, INC.
