Installing the door entry light at the front left or right
Precondition
Front door is open.
NOTE:
Description is for left component only. Procedure on the right side is identical.

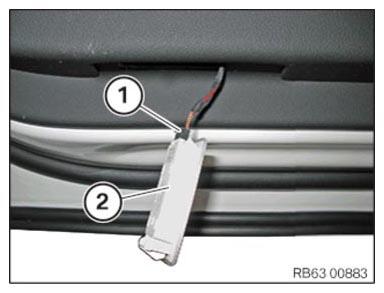

- Connect the connector (1) with the door entry light (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

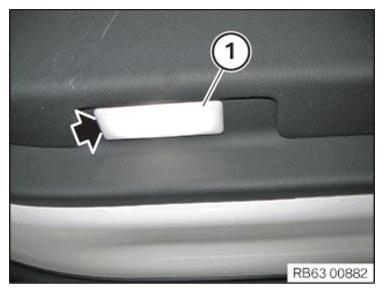

- Connect the door entry light (1) to the door trim panel.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
