Removing the LED module for the door pocket

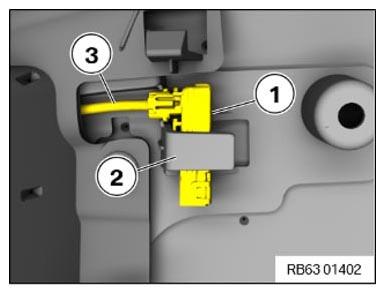

Pull the LED module (1) out of the holder (2).
Unclip the LED module (1) from the fiber-optic conductor (3).

G15685356

Courtesy of BMW OF NORTH AMERICA, INC.
