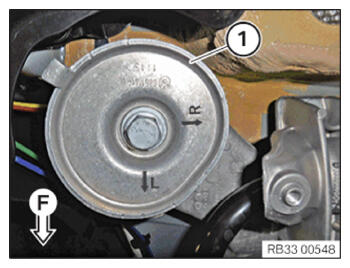

Securing rear axle

• Tighten the thrust washer (1) on the left on the rubber mount of the rear axle support.

  Left thrust washer (1) = L arrow in driving direction

  Right thrust washer (1) = R arrow in driving direction

• Replace screw.

  Parts:  Screw

• Tighten down screw.
  TIGHTENING TORQUES SPECIFICATION



  Rear axle carrier to body
  M14 Replace screw.	tightening torque	185 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

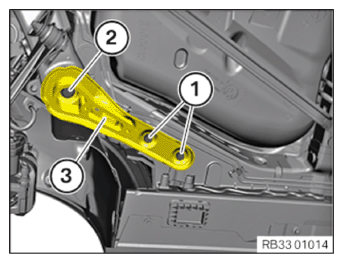

  Install thrust arm

• Replace screws (1) and (2).

  Parts:  Screws

• Position thrust arm (3).
• Tighten the screws (1) and (2) hand-tight.
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Rear axle carrier to body
  M14 Replace screw.	tightening torque	185 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Thrust arm on body
  M10 Replace screws.	Joining torque	56 Nm
  	Angle of rotation	45°

Follow-up work

• Refer to IF INSTALLED: CONNECTING THE CONNECTOR TO THE SERVOMOTOR OF THE REAR AXLE DIFFERENTIAL .
• Refer to IF INSTALLED: SECURING CABLE .
• Refer to IF INSTALLED: CONNECTING THE CABLE (ADDITIONAL WORK ON ACTIVE STABILIZER .
• Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
• Refer to SECURING CABLES ON RIGHT AND LEFT .
• Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to IF INSTALLED: INSTALLING THE REAR AXLE COVER .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to INSTALLING CENTER STIFFENING PLATE .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
