Installing the rollover protection

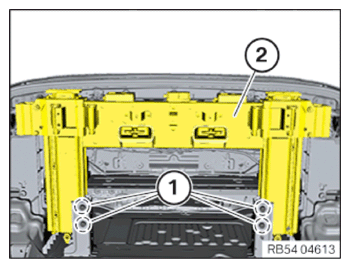

• With the aid of a support person, feed in the rollover protection (2) from above.
• Replace screws (1)  .

  Parts  : Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Roll-over protection to body
  Screw Replace screw.	tightening torque	50 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Position seat belt guide bracket (2).
• Replace screws (1)  .

  Parts  : Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Roll-over protection to body top
  Screw Replace screw.	tightening torque	96 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

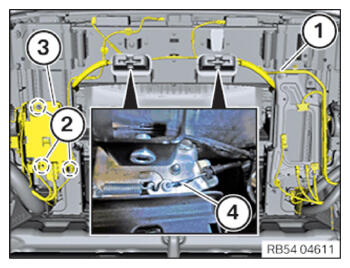

• Position the holder (3)  and tighten the nuts (2)  .
• Position the wiring harness (1)  and clip it to the brackets.
• Connect all the available plug connections and lock them.
• Clip in the Bowden cables for the backrest release (4)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TELEMATICS CONTROL MODULE .
• Refer to INSTALLING THE PANEL OF THE LUGGAGE COMPARTMENT PARTITION WALL .
• Refer to INSTALLING THE COVER FOR THE CROSS MEMBER .
• Refer to INSTALLING THE TOP PARTITION WALL TRIM PANEL .
• Refer to INSTALLING REAR HEAD RESTRAINT .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP AT REAR OUTER LEFT AND RIGHT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to CHECKING THE ROLL BAR .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
