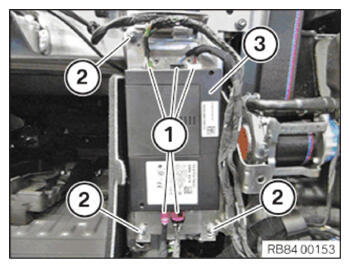

Install the telematics control module

• Correctly position the telematics control module (3)  .
• Tighten nuts (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Telematics control module on holder
  Nut	tightening torque	3.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1)  and lock.

Follow-up work

• Refer to INSTALLING THE PANEL OF THE LUGGAGE COMPARTMENT PARTITION WALL .
• Refer to INSTALLING THE TOP PARTITION WALL TRIM PANEL .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
