Install left and right rear side trim panel

Install rear trim panel

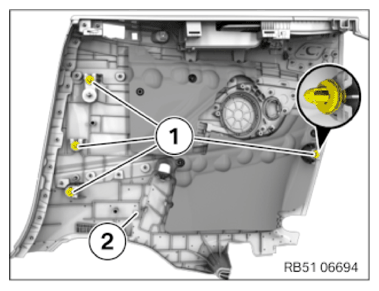

• Check the clips (1) on the side trim panel (2) for damage and replace, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially installing the Bowden cable for the convertible top compartment lid

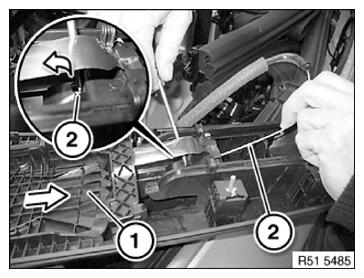

• Check the detents on the trim (1) for damage and replace if applicable.
• Clip Bowden cable (2) into trim (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

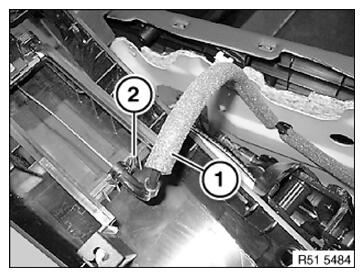

• Clip Bowden cable (1) into lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

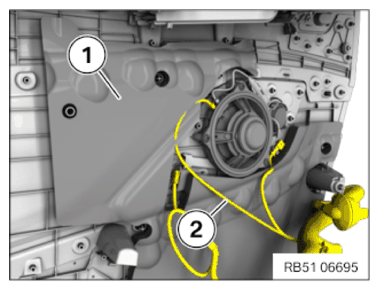

• Connect and lock all the connectors of the wiring harness (2) on the rear side trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

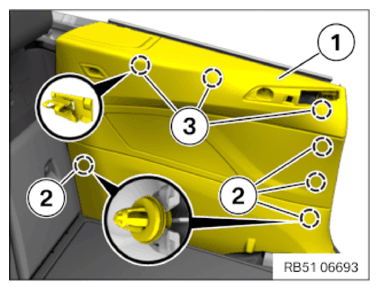

• Guide the safety belt into the rear side trim panel (1).
• Correctly position the rear side trim panel (1) and clip into the clamps (3).
• Clip in the rear side trim panel (1) with the clips (2).
• Feed the rear side trim panel (1) into the door weather strip.

Courtesy of BMW OF NORTH AMERICA, INC.

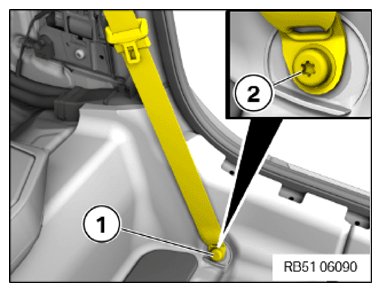

• Position the safety belt and tighten the screw (2).

End lining to body
screw	Tightening torque	42 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the protective cap (1).

• Replace the screw (1).

Part:  Screw

Tighten down screw (1).

Linkage aperture flap to connecting bracket
Sheet metal screw 4.8x19 Replace screw.	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

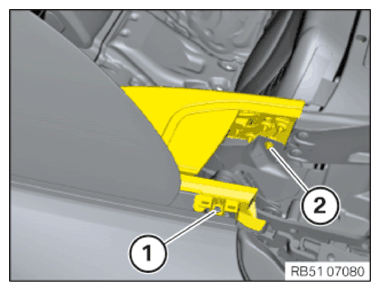

• Tighten nut (2).

Side trim panel to body
Hexagon nut	tightening torque	3 Nm
