Installing the window channel strip at rear outer left and right

Attaching the rear outer window recess finisher strip

Precondition

The door window glass is open.

• Check the window channel strip (1) for damage, replace if necessary.
• Coat the window channel strip (1) with a suitable lubricant prior to installation.

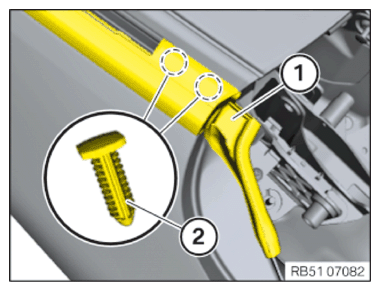

• Attach the window recess finisher strip (1) and clip into the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

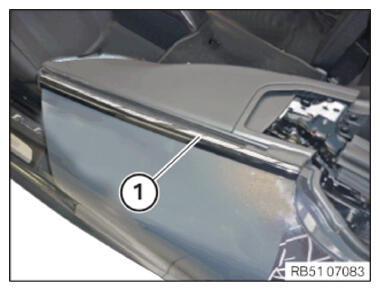

• Press down the window channel strip (1) across its entire length.

Courtesy of BMW OF NORTH AMERICA, INC.
