Remove the remote control receiver
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING REAR SEAT BACKREST .
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING BOTH SEAT BELT FINISHER STRIP ELEMENTS .

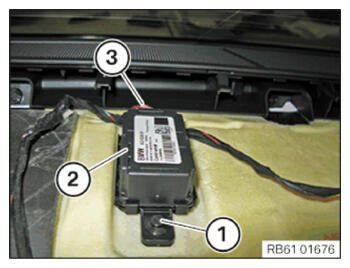

- Loosen expanding rivet (1).
- Remove the remote control receiver (2).
- Unlock and disconnect connector (3).
