Remove both seat belt finisher strip elements
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the seat belt finisher strip

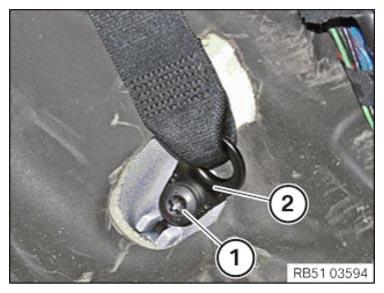

- Loosen screw (1).
- Remove end lining (2).

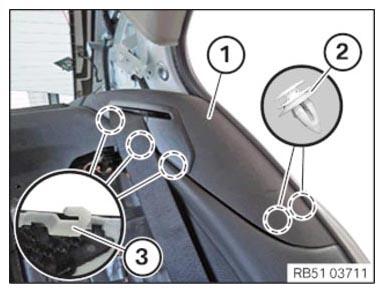

- Detach the seat belt finisher strip (1) toward the front and out of the clips (2).
- Thread out the seat belt finisher strip (1) towards the front and top and out of the guides (3).
- Thread out the end lining and remove seat belt finisher strip (1).
