Remove rear seat backrest

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .

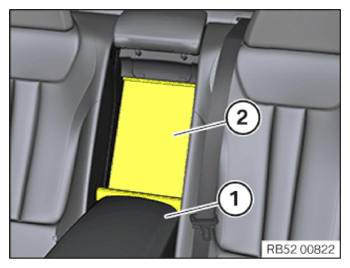

• Open the center armrest (1).
• Detach the lining (2) from the Velcro fastener.

  Courtesy of BMW OF NORTH AMERICA, INC.

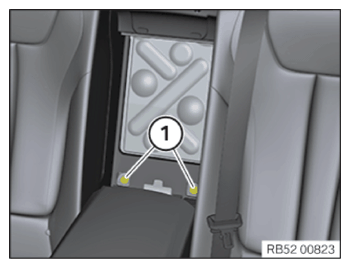

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

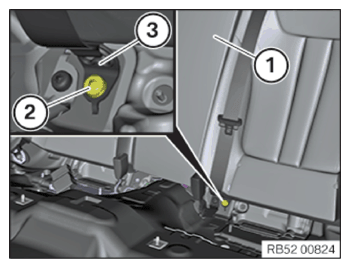

• Close the center armrest (1).
• Loosen screw (2).
• Remove the safety belt (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

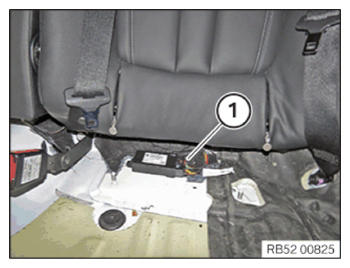

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

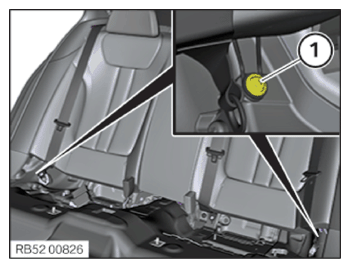

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

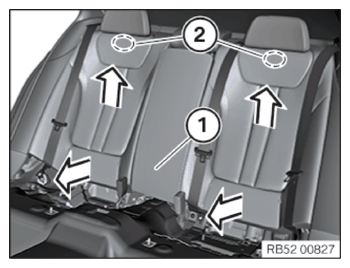

• Slightly pull the rear seat backrest (1) forward at the bottom and detach it from the guides (2) towards the top.
• Pull the rear seat backrest (1) out from the safety belts and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

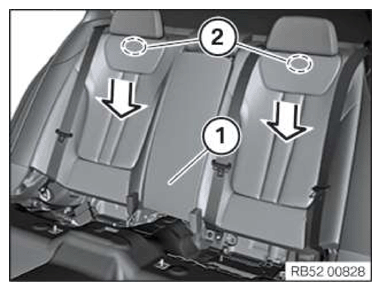

• Insert the rear seat backrest (1) and the feed in the seat belt.
• Attach the rear seat backrest (1) upwards into the guides (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear seat backrest on body
  Screw	tightening torque	18.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the seat belt (3) and tighten the screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  End lining to body
  screw	tightening torque	42 Nm

• Open the center armrest (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear seat backrest on body
  Screw	tightening torque	18.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the lining (2) on the seat frame with the Velcro fastener.
• Close the center armrest (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SEAT .
