Removing both C-pillar trim panels

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing C-pillar trim panel

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

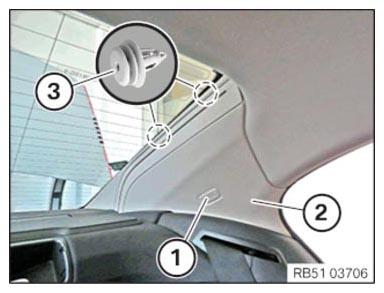

Remove the cover (1) and unscrew the bolt below it.
Release the C-pillar trim panel (2) from the clips (3) and guide out inwards and up.
