Seats -- Repair (G12)
>>
52 24 Rear Seat Cover, Arm Rests, Head Restraints
>>
52 24 200 Remove & install seat surface
>>
Remove rear seat bench
Remove rear seat bench

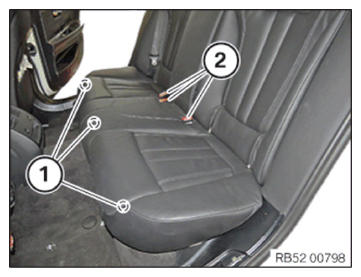

Unclip the rear seat in the area (1) in upward direction.
Feed out the seat belt buckle (2) from the rear seat.
Courtesy of BMW OF NORTH AMERICA, INC.

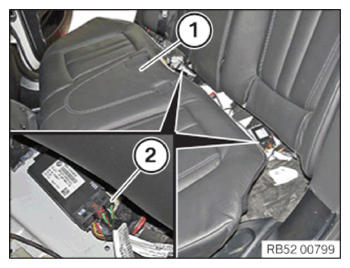

Slightly pull the rear seat (1) forward.
Unlock and disconnect plug connections (2).
Lift out the rear seat (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
