Remove front cross connection

Preliminary work

• Refer to REMOVING SEAL FOR FRONT HOOD .
• Refer to REMOVING THE MOUNT OF THE HOOD SEAL .
• Refer to REMOVING FRONT BUMPER COVER .
• Refer to REMOVING THE MOUNTING FOR THE FRONT BUMPER COVER .
• Refer to REMOVING FRONT CROSS CONNECTION .

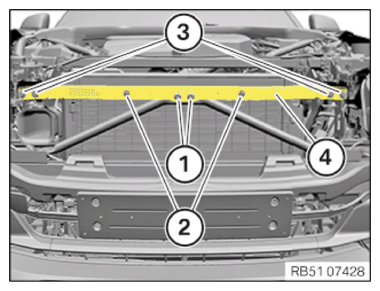

• Release screws (1)  to (3)  , guide out and remove cross connection (4)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
