(Removing the mount for the front bumper cover)
(Removing the mount for the front bumper cover)

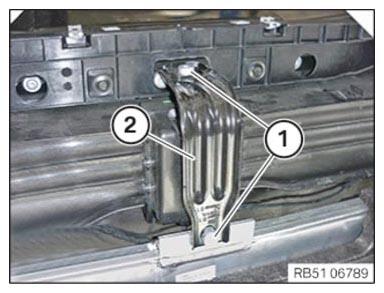

Loosen the screws (1) and remove the strut (2).
Courtesy of BMW OF NORTH AMERICA, INC.

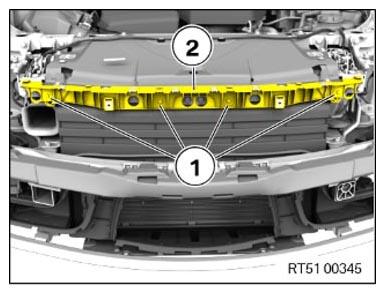

Loosen screws (1).
Slightly bend the middle of the mount for the front bumper cover (2), guide out and remove, starting on one side and then the other.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
