Remove front cross connection

Preliminary work

• Refer to REMOVING SEAL FOR FRONT HOOD .
• Refer to PARTIALLY REMOVING THE MOUNT OF THE HOOD SEAL .

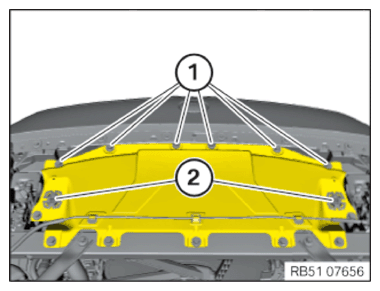

• Only release screws (1)  by a few turns (do not remove).
• Unlock the radiator bracket (2)  and remove upwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

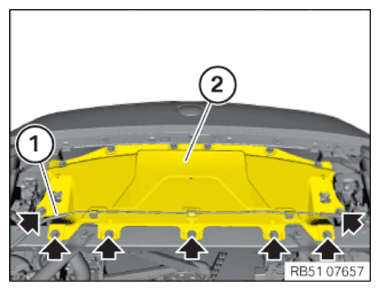

• Remove screws (arrows).
• Detach the Bowden cable (1)  from the brackets.
• Feed out and remove the front cross connection (2)  to the rear from the front screws.

  Courtesy of BMW OF NORTH AMERICA, INC.
