Installing the inner panel for the luggage compartment partition wall

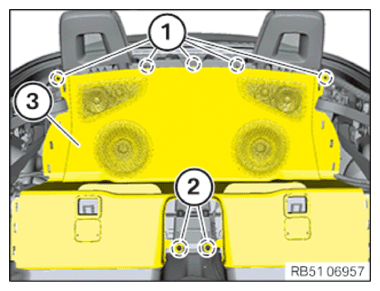

• Insert and position the inner panel for the luggage compartment partition wall (3)  .
• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Panel for the luggage compartment partition wall to support
  Screw	tightening torque	2 Nm

• Tighten nuts (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Panel for the luggage compartment partition wall to body
  Nut	tightening torque	2 Nm

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING THE TRIM PANEL FOR THE LOWER LEFT AND RIGHT BODY COLUMN .
• Refer to INSTALLING LEFT AND RIGHT DOOR SILL COVER STRIP .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE TRIM PANEL FOR THE LEFT AND RIGHT BODY PILLAR .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
• Refer to INSTALLING THE STORAGE NET .
