51 46 Topping Partition Trim Panel
>>
51 46 070 Removing and installing/replacing top partition panel trim panel
>>
Installing the trim panel for the top rollover protection
Installing the trim panel for the top rollover protection

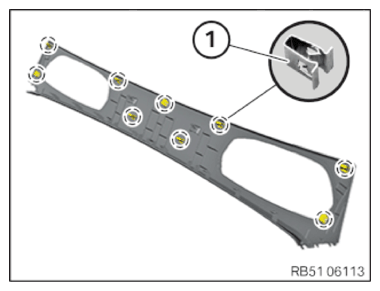

Check the clamps
(1)
for damage.
The clamps
(1)
must not be missing or damaged.
Courtesy of BMW OF NORTH AMERICA, INC.

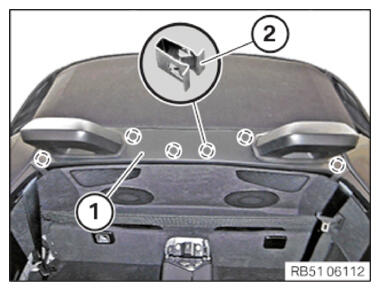

Feed in the cover
(1)
from above and attach it to the clamps
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
