(Install left and right rear side trim panel)

NOTE: Perform the steps on the left and right side.

NOTE: Description is for left component only.
Procedure on the right side is identical.

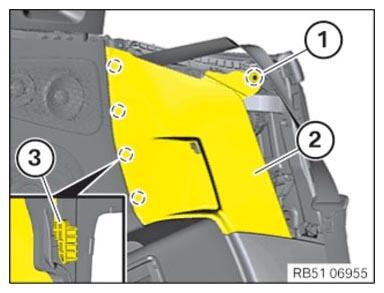

• Feed out the rear side trim panel (2) from above and hang it on the hooks (3).
• Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATION)

Side trim panel to support
Screw	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
