(Installing the trim panel for the lower left and right body column)

NOTE: Perform the steps on the left and right side.

NOTE: Description is for left component only.
Procedure on the right side is identical.

• Get the set of special tools 0 493 752 (00 9 329) ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

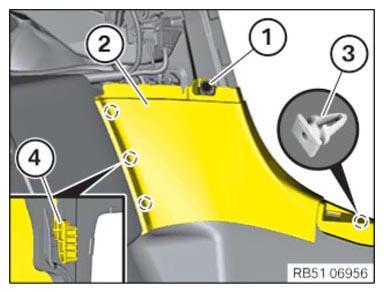

• Thread the trim panel for the lower bodywork pillar (2) in from above and hook it on to the hook (4).
• Clip the trim panel for the lower bodywork pillar (2) on to the clip (3).
• Tighten nut (1).

(TIGHTENING TORQUES SPECIFICATION)

Trim panel for the bottom body pillar to body
Nut	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
