Install A-pillar trim panel

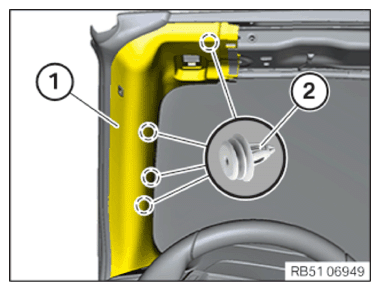

• Install the A-pillar trim panel (1)  and, if necessary, connect and lock the connector.
• Correctly position A-pillar trim panel (1)  and clip in at the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TOP WINDSHIELD PANEL TRIM (BOTTOM PART) .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT VANITY MIRROR LIGHT .
