(Installing the left and right vanity mirror light)
(Installing the left and right vanity mirror light)
Installing the vanity mirror light at the front left or right
NOTE:
Description is for left component only. Procedure on the right side is identical.

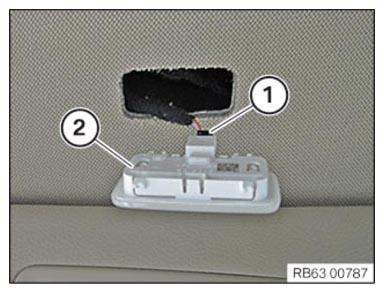

Connect and lock the connector (1) with the vanity mirror light (2).
Courtesy of BMW OF NORTH AMERICA, INC.

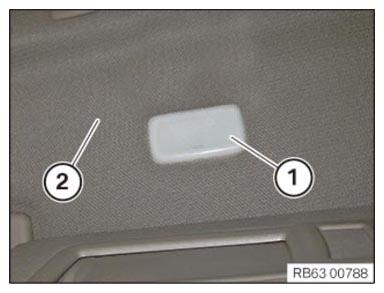

Install the vanity mirror light (1) in the top windshield panel trim (2).
Courtesy of BMW OF NORTH AMERICA, INC.
