Installing the top windshield panel trim (bottom part)

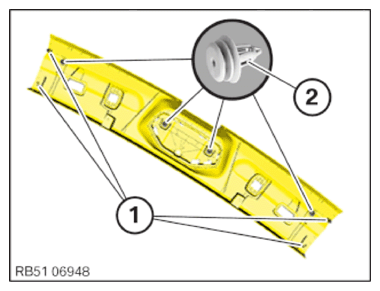

• Check the clamps (1)  and the clips (2)  for damage.

  Defective or missing clamps (1)  and clips (2)  need to be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

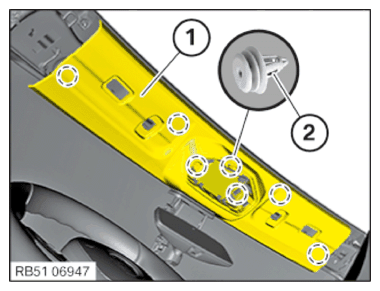

• Install the top windshield panel trim (1)  and feed in the wiring harness.
• Correctly position the top windshield panel trim (1)  and attach to clips (2)  .

  Installing the covers for the interior rearview mirror

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check detents (1)  and (2)  for damage.

  In case of defective detents (1)  or (2)  , the covers must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and engage covers (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT VANITY MIRROR LIGHT .
