Installing Roof function center (FZD)

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check clamps (1)  and safety catches (2)  for damage.

Result

The clamp or safety catch is damaged.

Measure

• Renew the roof function center (FZD).

  Parts  : Roof function center (FZD)

  Courtesy of BMW OF NORTH AMERICA, INC.

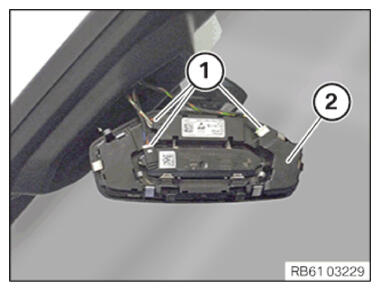

• Connect and lock the connector (1)  with the roof function center (FZD) (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the roof function center (FZD) (1)  and lock into the clamps (2)  and safety catches (3)  .
