41 52 045 Removing/Installing/Replacing Cover Of Rear Door, Inner Left Or Right

Read contents of BODY, GENERAL .

NOTE: Observe procedures for REPAIR STAGE 1 .

Necessary preliminary tasks:

Release expanding rivet (1).

Release screw (2).

Release expansion nuts (3).

Installation note:

Renew expansion nuts (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Release gasket (1) from cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

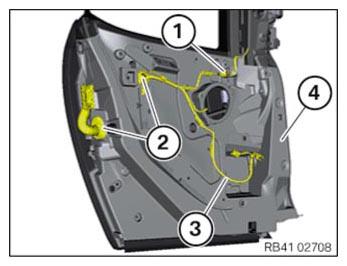

Unlock plug connections (1) and disconnect.

Release cable grommets (2).

Release wiring harness (3) on all cable clips from the cover (4).

Courtesy of BMW OF NORTH AMERICA, INC.

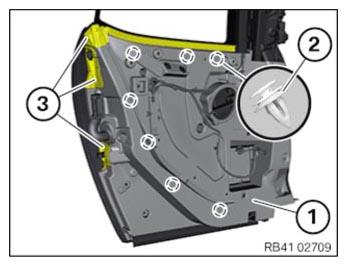

Release cover (1) from the clips (2).

Feed out cover (1) from the sealings (3).

Feed wiring harness out of the cover (1).

IMPORTANT: Risk of damage!

Hold door on assembly stand in position and release mounting for door stop on assembly stand.

Remove cover (1).

Affix door stop on assembly stand.

Installation note:

Make sure the sealings (3) are correctly seated on the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

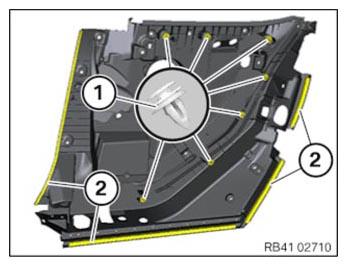

Installation note:

Replace faulty clips (1).

Gaskets (2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
