61 35 980 Removing and installing/replacing aerial for Comfort Access on left (or right)

Necessary preliminary tasks:

• Remove REAR DOOR TRIM PANEL

Disconnect plug connection (1).

Release screw (2).

Remove aerial for Comfort Access (3).

Installation note:

Ensure that aerial for Comfort Access (3) is correctly seated.

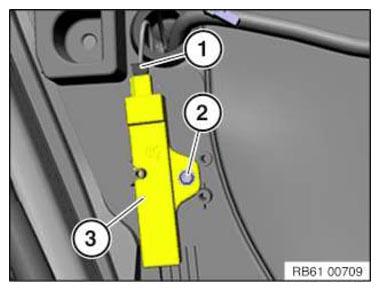

Fig 1: Identifying Comfort Access Aerial And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
