65 13 090 Removing and installing/replacing speaker (mid-range speaker in rear door)

Necessary preliminary tasks:

• Remove REAR DOOR TRIM PANEL

Release screws (1).

Tightening torque 65 13 3AZ .

Unfasten plug connection (2) and disconnect.

Remove mid-range speaker (3) from inner door panel.

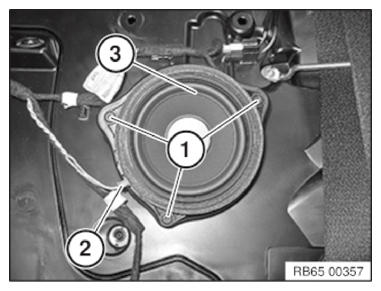

Fig 1: Identifying Mid-Range Speaker, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
