41 51... Mount Door On Assembly Stand
Special tools required:
- 2 358 309
- 00 2 300

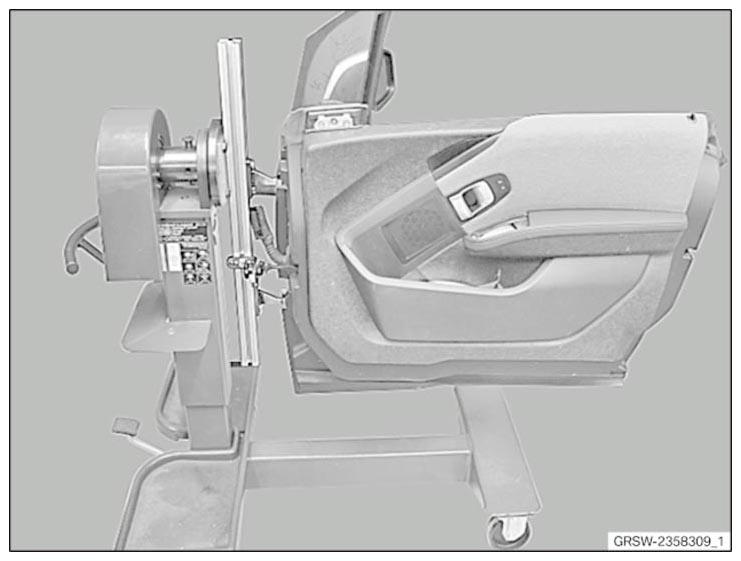

As a support for the repair work, the door can be mounted with the mounting 2 358 309 on the special tool 00 2 300.
Follow operating instructions of the special tools!

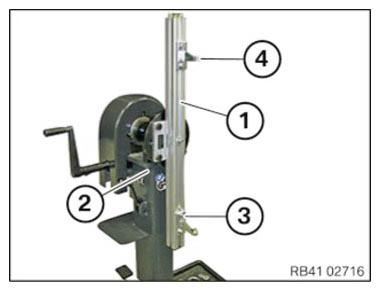

Screw mounting (1) tightly to assembly stand (2).
Screw mounting (3) for the lower door hinge tightly to the mounting (1).
Secure mounting (4) for the upper door hinge loosely to the mounting (1).
NOTE:
Adjust mounting (1) vertically using the bubble level.

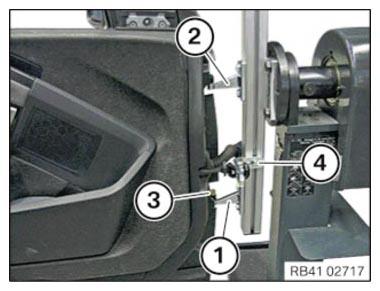

Attach door to mounting (1) with the aid of a second person.
Adjust mounting (2) relative to the upper door hinge and screw tight.
Affix lower door hinge by means of retaining screw (3).
Position and tighten the mounting (4) for door stop on mounting and door stop.
