41 52 045 Removing/installing/replacing cover of rear door, inner left or right

Read contents of BODY, GENERAL .

NOTE: Observe (REPAIR STAGE 1) procedure!

Necessary preliminary tasks:

Release expanding rivet (1).

Release screw (2).

Release expansion nuts (3).

Installation note:

Renew expansion nuts (3).

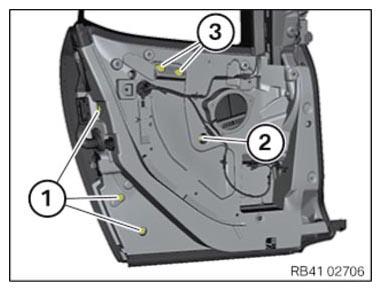

Fig 1: Identifying Expanding Rivet, Expansion Nuts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release gasket (1) from cover (2).

Fig 2: Identifying Gasket And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release cable grommets (2).

Release wiring harness (3) on all cable clips from the cover (4).

Fig 3: Identifying Cover, Wiring Harness, Cable Grommets And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (1) from the clips (2).

Feed out cover (1) from the sealings (3).

Feed wiring harness out of the cover (1).

IMPORTANT: Risk of damage!
Hold door on assembly stand in position and release mounting for door stop on assembly stand.
Remove cover (1).
Fix door stop on assembly stand.

Installation note:

Make sure the sealings (3) are correctly seated on the cover (1).

Fig 4: Identifying Cover, Sealings And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1).

Gaskets (2) must not be damaged.

Fig 5: Identifying Gaskets And Faulty Clips
