51 16 165 Removing and installing/replacing complete center console
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove FRONT CENTER CONSOLE TRIM
- Remove REAR CENTER CONSOLE TRIM
- Remove COVER FOR STORAGE COMPARTMENT

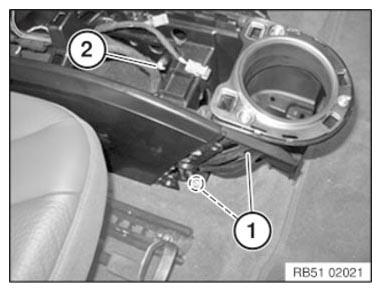

Unscrew nuts (1).
Tightening torque 51 16 8AZ .
Unfasten cable strap (2).

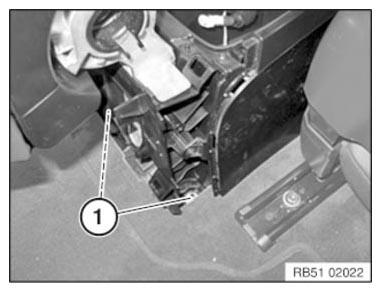

Unscrew nuts (1).
Tightening torque 51 16 8AZ .

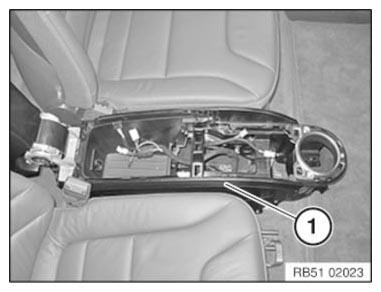

Lift out center console (1) upwards.
When replacing, remount the following parts depending on the version:
