51 16 163 Removing and installing/replacing rear center console cover

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Fold up center armrest.

Unclip trims (1) and (2) in direction of arrow.

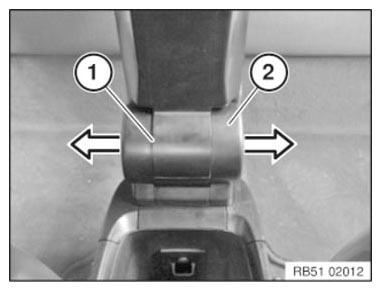

Fig 1: Unclipping Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out cover (1) in direction of arrow.

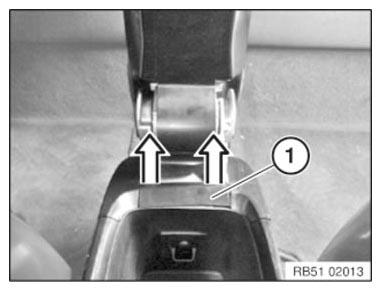

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (1) from clamp (2) in direction of arrow and remove.

Installation note:

Replace faulty clamps (2).

Corresponding mountings must not be missing or damaged.

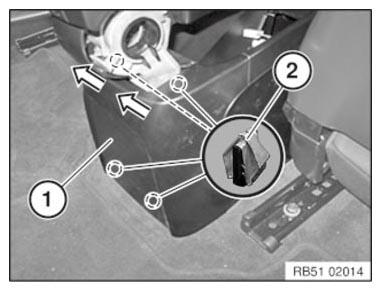

Fig 3: Releasing Trim From Clamp
