51 16 206 Removing and installing/replacing center armrest

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Move both front seats forwards
• Remove REAR CENTER CONSOLE TRIM

Release screws (1).

Remove center armrest (2) upwards.

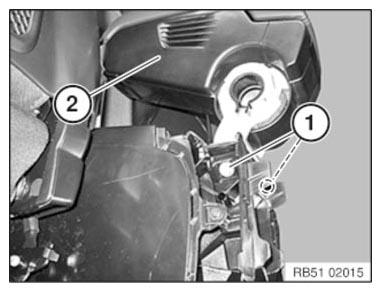

Fig 1: Identifying Center Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify LID FOR CENTER ARMREST
