51 16 160 Removing and installing (replacing) center console trim (front)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

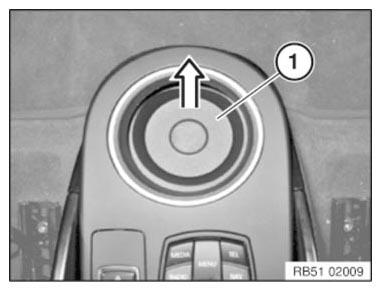

Lever out trim (1) upwards.

Fig 1: Removing Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

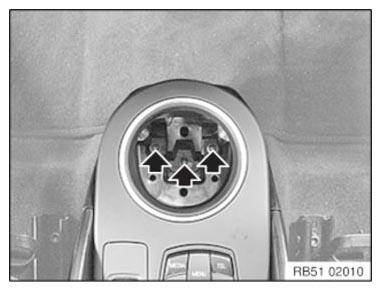

Release screws.

Fig 2: Locating Center Console Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

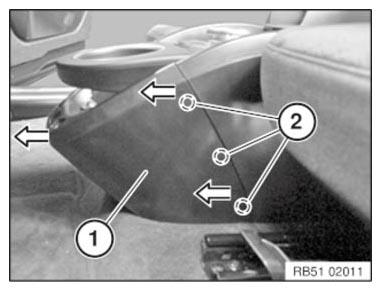

Release trim (1) in direction of arrow out of guides (2).

Fig 3: Releasing Trim Out Of Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

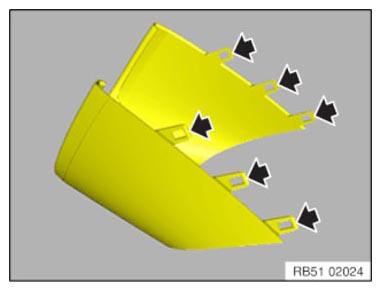

Guides must not be missing or damaged.

Fig 4: Locating Guides

Courtesy of BMW OF NORTH AMERICA, INC.
