Removing and installing rear axle final drive
Special tools required:
- 33 5 206
- 2 348 293
- 33 5 070
- 23 4 050
- 00 2 030
- 33 5 120
- 33 5 126
- 33 5 122
- 33 4 050
- 33 5 127
33 5 206 Rear axle final drive must be lashed with tensioning strap to prevent it falling out when the output shafts are forced off.
After completing the repair, check the OIL LEVEL in the rear axle differential.
Use only the approved differential oil: BMW rear differential fluid MSP/A , BMW part number 83 22 2 365 988
Failure to comply with this instruction will result in serious damage to the rear axle differential.
Vehicles up to 07/2016:
Use new, non-precoated sunk nuts. Bond the recessed nut and propeller shaft with Loctite 648!
Vehicles with production dates from 07/2016 - 11/2017:
Use precoated recessed nuts! Do not further bond the recessed nuts with Loctite 648!
After the propeller shaft has been screwed into the rear axle differential, the hardening time must be observed!.
Hardening time:
- Non-precoated recessed nuts (adhesive strip with Loctite): min. 3h
- Precoated recessed nuts: min. 2h
The hardening time may be extended at lower temperatures!
Failure to comply with these instructions may cause serious damage!
Necessary preliminary work:
- Remove RIGHT REAR WHEEL .
- Remove COMPLETE EXHAUST SYSTEM .
- Remove REINFORCEMENT STRUTS .
- Remove rear propeller shaft heat shield.
Removal:
F83 only:

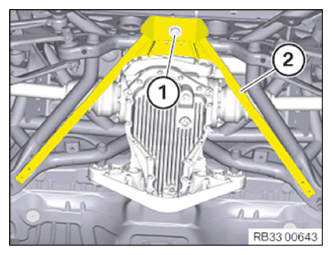

Loosen screw (1).
Remove reinforcement bar (2).
Failure to comply will result in humming and vibrations!
Before loosening the propeller shaft:
Check that mark (1) on rear axle differential and mark (2) on propeller shaft are present.
Mark (1) present propeller shaft can be loosened.
Mark (1) not present transfer mark (2) from propeller shaft to dust plate (transfer white marker line on carbon pipe (propeller shaft) to dust plate of rear axle differential)!
To release sunk nut, engage a gear and operate parking brake!
Failure to comply with this instruction may result in serious damage to the rear axle final drive!
If it is attempted to open the recessed nut in counter-clockwise direction, the recessed nut will be automatically screwed in further and the recessed collar of the 12-edge flange nut will be severely damaged.
If the insert collar of the flange nut was damaged, the propeller shaft can no longer be secured using a new sunk nut and the rear axle differential must be replaced.

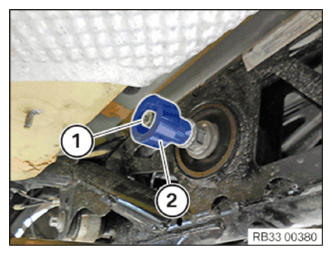

Release sunk nut clockwise with special tools 2 348 293 and 33 5 070.

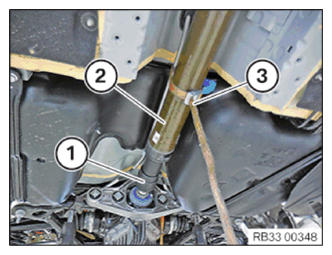

Hang up CRP propeller shaft (2) with a tensioning strap (3).
On removal of rear axle differential, sliding joint (1) must be pulled from input flange of rear axle differential.
- Remove RIGHT OUTPUT SHAFT .

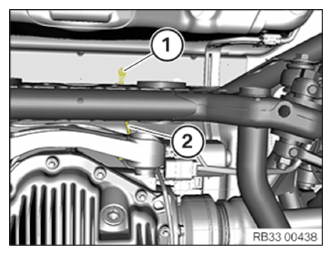

Disconnect the plug connection (3) from the temperature sensor.
Release the cable clip (2) of the sensor cable (1) from the oil sump.
Disconnect the plug connection (1) from the servomotor of the rear axle differential (2).
Slacken nut (1).
Remove ground strap (2) from bolt.

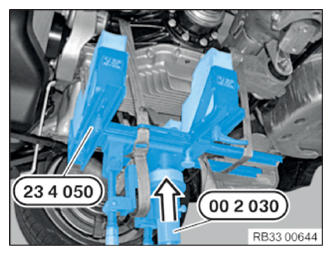

Place the special tool 23 4 050 onto the universal jack 00 2 030.
Support rear axle final drive with special tool 23 4 050.

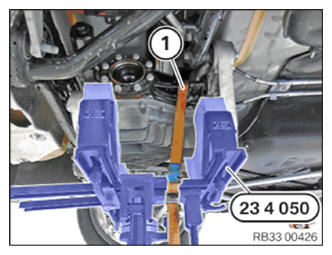

Secure the rear axle differential with tensioning strap (1) to special tool 23 4 050.
In order to prevent lowering of the rear axle support beyond the specified dimension, the originally installed screws of the rear axle support must be replaced by repair screws M12x1.5x115 (part number: 07 14 7 426 660).
It is essential to fit the repair screws M12x1.5x115 with washers 37x2.5 (part number: 31 33 6 776 760).

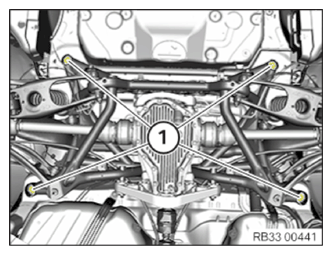

Undo screws (1) one after the other and replace by repair screws M12x1.5x115.
Lower rear axle support at rear by 35 mm.
- During the lowering process, it is imperative to make sure that no adjacent components are damaged!
Screw in the repair screws so that the rear axle support is held in the lowered position by the repair screws.

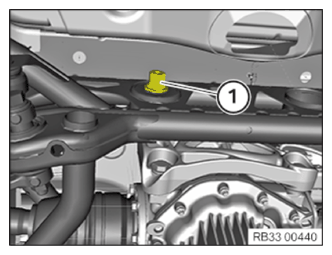

Loosen screw (1).
Remove vibration absorber (2).
Special tools 33 5 120 and 33 5 126 must be inserted in all-round slot (1) on output shaft!
Use special tool 33 5 120 with shaped element 33 5 126 to press (in jolts) the output shaft out of the rear axle differential on the left.
The thrust piece of the bolt 33 5 122 positioned against the rear axle final drive unit (see arrow in illustration).
Caution! Risk of damage!
Do not support thrust piece of screw 33 5 122 at oil sump.
Loosen screw (1).

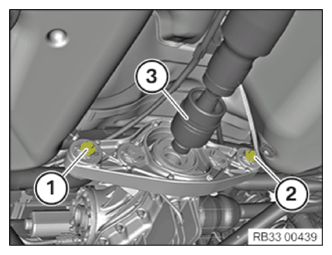

Release screws (1 and 2).
Pull sliding joint (3) off input flange of rear axle differential.
Lower the rear axle differential with special tools 33 4 050 and 00 2 030.
Protect output shaft against damage.
Push the rear axle differential towards the right.
Thread out left output shaft.
Lower rear axle differential with special tools 33 4 050 and 00 2 030.
Installation:
Before the output shaft is installed, always replace the circlip (1) in the rear axle differential.
Coat highlighted contact surface (2) of output shaft with approved differential oil: BMW rear differential fluid MSP/A , BMW part number 83 22 2 365 988
High installation forces indicate that the output shaft spline teeth are damaged or deformed!
Check gearing and replaced parts if damaged.
- REPLACE BOTH RADIAL SHAFT SEALS FOR OUTPUT SHAFTS on the rear axle differential.
Position rear axle differential on rear axle support.
- Guide left output shaft into rear axle differential!
Part : Replace screws (1 and 2).
Insert screw (2) into holder before positioning rear axle differential on rear axle support.
Pull sliding joint (3) back.
Raise rear axle differential until screws (1 and 2) can be screwed.
Tightening torque 33 17 2AZ .
Replace screw (1).
Parts : Screw
Tighten screw (1).
Tightening torque 33 17 3AZ .
Replace screw (1).
Part : Screw
Position vibration absorber (2).
Tighten screw (1).
Tightening torque 33 17 4AZ .
Lift the special tool 23 4 050 with the workshop jack 00 2 030 until the rear axle support is in contact with the body.
Undo repair screws (1) one after the other and replace by new original screws M12x1.5x60.
Part : Bolts
Tighten down screws (1).
Tightening torque 33 33 1AZ .
Remove tensioning strap (1).
Lower the special tool 23 4 050 with the universal jack 00 2 030 and set it aside.
Clean adhesive residue from the thread (1) of the propeller shaft hub.
Clean and degrease hub teeth (2).
Clean and degrease axial contact surface (3).
Remove retaining clip (1) and gasket (2).
Remove insert nut (1).
Before fastening the propeller shaft to the rear axle differential:
Clean insert collar (1) on flange nut and gearing on bevel pinion (2) of all residues and degrease!
Top up insert collar (1) using grease Castrol Optitemp HAT LF1, BMW part number 83 23 0 417 754.
Clean and degrease axial contact surface (3).
After applying Loctite 648, the parts must be installed within 12 minutes!
Failure to comply with this instruction may result in detachment.
Part : Replace gasket, sunk nut (1) and retaining clip (2).
Place flange nut (1) with gasket in insert collar of flange nut.
Mount retaining clip (2).
Installation sequence:
- Join propeller shaft to transmission
- Join propeller shaft to rear axle final drive
Screw-fastening sequence:
- Flexible disc to transmission
- Sunk nut on propeller shaft
Joining time using Loctite 648 applicable only for vehicles with production dates up to 07/2016:
After applying Loctite 648, the parts must be installed within 12 minutes!
Failure to comply with this instruction may result in detachment.
Use Loctite 648 (BMW part number 9 067 732) and evenly apply an even bead in this area (1) approximately 20 mm from the outside. The Loctite 648 must fill all tooth gaps uniformly to a length of approx. 5 mm.
Align mark (1) on propeller shaft with mark (2) on rear axle differential dust plate.
Push propeller shaft on up to limit position of recessed nut.
Screw recessed nut (2) by hand at least 2 thread turns onto propeller shaft (1).
Apply Loctite 648 to the thread (1) of the propeller shaft as close as possible to the sunk nut.
Failure to comply with this instruction may result in serious damage to the rear axle final drive.
To tighten sunk nut, engage a gear and operate parking brake!
Screw in sunk nut counter-clockwise with special tools 2 348 293 and 33 5 070 (see direction of arrow in the illustration).
The sunk nut must be screwed into place within 5 minutes.
Tightening torque 26 11 3AZ .
A - incorrectly screwed→ thread start of propeller shaft must not be visible!
B - correctly screwed Distance between recessed nut and propeller shaft: 0 to max. 4 mm
Remove tensioning strap (3).
Special tool 33 5 127 must be mounted in the allround slot on output shaft.
Drive in left output shaft with special tool 33 5 127 and a rubber mallet into the rear axle differential.
- Install RIGHT OUTPUT SHAFT .
Position ground strap (2).
Tighten nut (1).
Connect plug connection (1) at rear axle differential servomotor (2).
Fasten cable clip (2) of sensor cable (1) on oil sump.
Connect plug connection (3) at temperature sensor.
F83 only:
Position bracing strut.
Replace screw (1).
Parts: Screw
Tighten screw (1).
Tightening torque 33 32 15AZ .
Required follow-up work:
- Check the OIL LEVEL in the rear axle differential, correct if required.
- Install rear propeller shaft heat shield.
- Install REINFORCEMENT STRUTS .
- Completely install the EXHAUST SYSTEM .
- Mount RIGHT REAR WHEEL .
- Carry out wheel alignment procedure. Refer to CARRY OUT KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
