Checking/topping up oil level in rear axle final drive
WARNING:
Risk of burning if exhaust system is touched!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT:
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the rear axle differential.
Failure to comply with this instruction will result in serious damage to the rear axle differential.

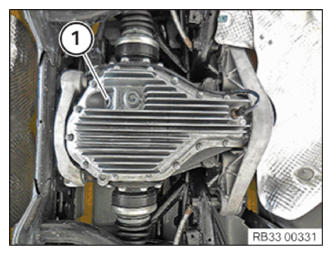

Open screw plug (1).
Check oil level.
Top up the final drive oil as required until oil emerges from the oil filler opening.
Part : Replace screw plug (1).
Apply screw plug (1).
Tightening torque 33 11 5AZ .
