Removing and installing/replacing oil pump (S55 engine)

Special tools required:

2 303 793

CAUTION: Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove OIL SUMP .
Remove SEALING CAP of vacuum pump.
Remove OIL SUCTION PUMP .

Remove bolt (1).

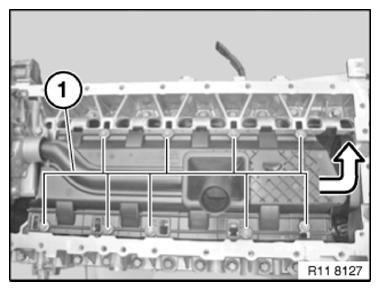

Release aluminium screws (2).

Installation note:

Replace aluminium screws .

Remove intake pipe with oil deflector.

Installation note:

Replace O-ring.

Illustration shows N52

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Before releasing the central bolt on the oil pump, the hydraulic chain tensioner must be drained.

Carefully press tensioning rail (1) with a suitable screwdriver (2) in direction of arrow.

As the oil pressure in the chain tensioner can only be drained pulsating, the tensioning rail (1) must be pressed several times.

Relieve the tension using a suitable lock pin on the chain drive.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Camshaft sprocket must be blocked in order to release central bolt (1).

Secure special tool 2 303 793 to crankcase.

Release oil pump central bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

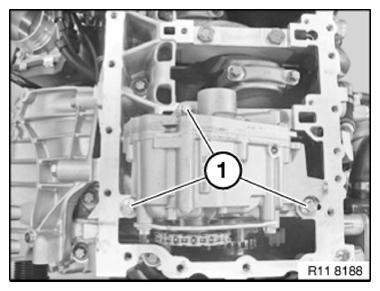

Release aluminium screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release aluminium screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Detach sprocket (1) in direction of arrow.

NOTE: Chain tensioner presses timing chain (3) upwards.
Do not remove sprocket (1).

Remove oil pump (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

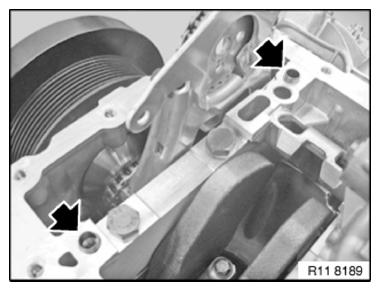

Check spacer bushes for tight fit and damage; replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil pump (2).

Align mounting flats (3) on oil pump (2) to camshaft sprocket (4).

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Observe different screw lengths.

Use aluminium bolts (1).

Tightening torque 11 41 1AZ .

Installation note:

Replace aluminium screws .

Courtesy of BMW OF NORTH AMERICA, INC.

Use aluminium bolts (1).

Tightening torque 11 41 6AZ .

Installation note:

Replace aluminium screws .

Watch mounting flats on oil pump sprocket.

Courtesy of BMW OF NORTH AMERICA, INC.

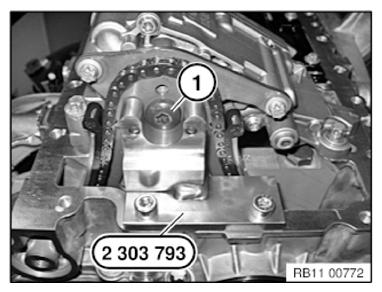

NOTE: To secure the central bolt (1) the camshaft sprocket must be blocked.

Secure special tool 2 303 793 to crankcase.

Insert oil pump central bolt (1).

Tightening torque 11 41 9AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil deflector.

Installation note:

Replace O-ring.

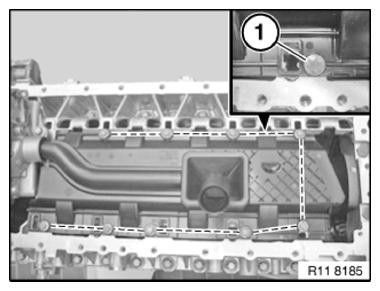

Insert aluminium screws (2) along line.

Installation note:

Replace aluminium screws .

Tightening torque 11 41 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
